IW2OHX / IR2UFV Digital Ham Radio Station

iw2ohx.ampr.org - ir2ufv.ampr.org - ir2ufv-server.local.mesh

These systems are part of the AmprNet / HAMNet / AREDN




IR2UFV-15 BPQ System Pactor/Packet MBO - VHF/UHF/HF BBS and Winlink RMS

IR2UFV is a multi-mode and multi-port digital system. It provides a gateway between the VHF/UHF Packet Network and HF Digital modes. It offers BBS, Winlink services, DXCluster and real time chat.

00-23UTC
144.825 FM AFSK 1200Bd
432.500 FM AFSK 1200Bd - APRS
433.725 FM G3RUH 9600bd
43X.XXX FM NPR-70 130kpbs - https://hackaday.io/project/164092-npr-new-packet-radio

00-23 UTC
7.04840 (dial) - P1234/ARDOP/VARA - Winlink IR2UFV
7.04640 (dial) - P1234/ARDOP/VARA - BBS IR2UFV

08-20 UTC
14.10890 (dial) - P1234/ARDOP/VARA - Winlink IR2UFV
14.11500 (dial) - P1234/ARDOP/VARA - BBS IR2UFV
21.11350 (dial) - P1234/ARDOP/VARA - Winlink IR2UFV

00-23 UTC
10.1473 (dial) - HF APRS RPR / HF APRS PR 2000Hz / 2400Hz Mail forwarding

06-18 UTC
14.10220 USB (dial) -  PR 1100Hz Net105 = 14.105 LSB PR 1700Hz
14.10220 USB (dial) -  RPR 1500Hz
14.10220 USB (dial) -  P1234/ARDOP/VARA - BBS IR2UFV

18-23 UTC
7.04510 USB (dial) -  PR 1100Hz + 2000Hz
7.04510 USB (dial) -  RPR 1500Hz
7.04510 USB (dial) -  P123 - Winlink IR2UFV


23-06 UTC
3.59110 USB (dial) -  PR 1100Hz + 2000Hz
3.59110 USB (dial) -  RPR 1500Hz
3.59110 USB (dial) -  P123 - Winlink IR2UFV


Packet and Pactor BBS Forwarding partners:
IR0UGN - F3KT - GB7CIP - UT1HZM - DB0ZAV - OK0PBR - YU7BPQ

AX.25 Radio links:

IQ2LB-12 (NETROM) - JN45NO - Limbiate(MB) - 4,5km - 9k6 - OK
IQ2LB(0-12) (Flexnet) - JN45NO - Limbiate(MB) - 4,5km - 9k6 - OK
IQ2LB(0-12) (AXUDP/Flexnet) - JN45NO - Limbiate(MB) - 4,5km - NPR70 130kbps - OK

NetRom Nodes:
BOLHF:IR2UFV-15 / BBSMI:IR2UFV-8 / RMSMI:IR2UFV-10 / UFVGW:IR2UFV-14 / XNLOM:IR2UFV-1

IR2UFV-15 Home Page  - BPQ32 Node Home Page

Flexnet Destinations on IR2UFV-1 (X)net Digipeater:
IR2UFV(1-7) = IR2UFV-7 (GW)

IR2UFV Linux (X)net Home Page  - (X)net Home Page
IW2OHX DLC7 (X)net Home Page  - (X)net Home Page

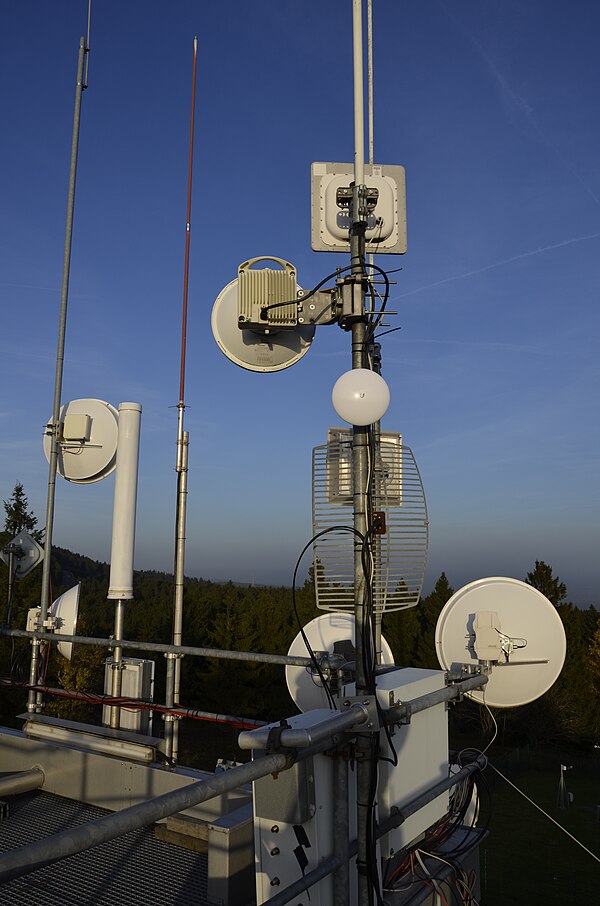

HAMNET DB Site description:
IW2OHX Site
HAMNET DB Site description: IQ2LB Site

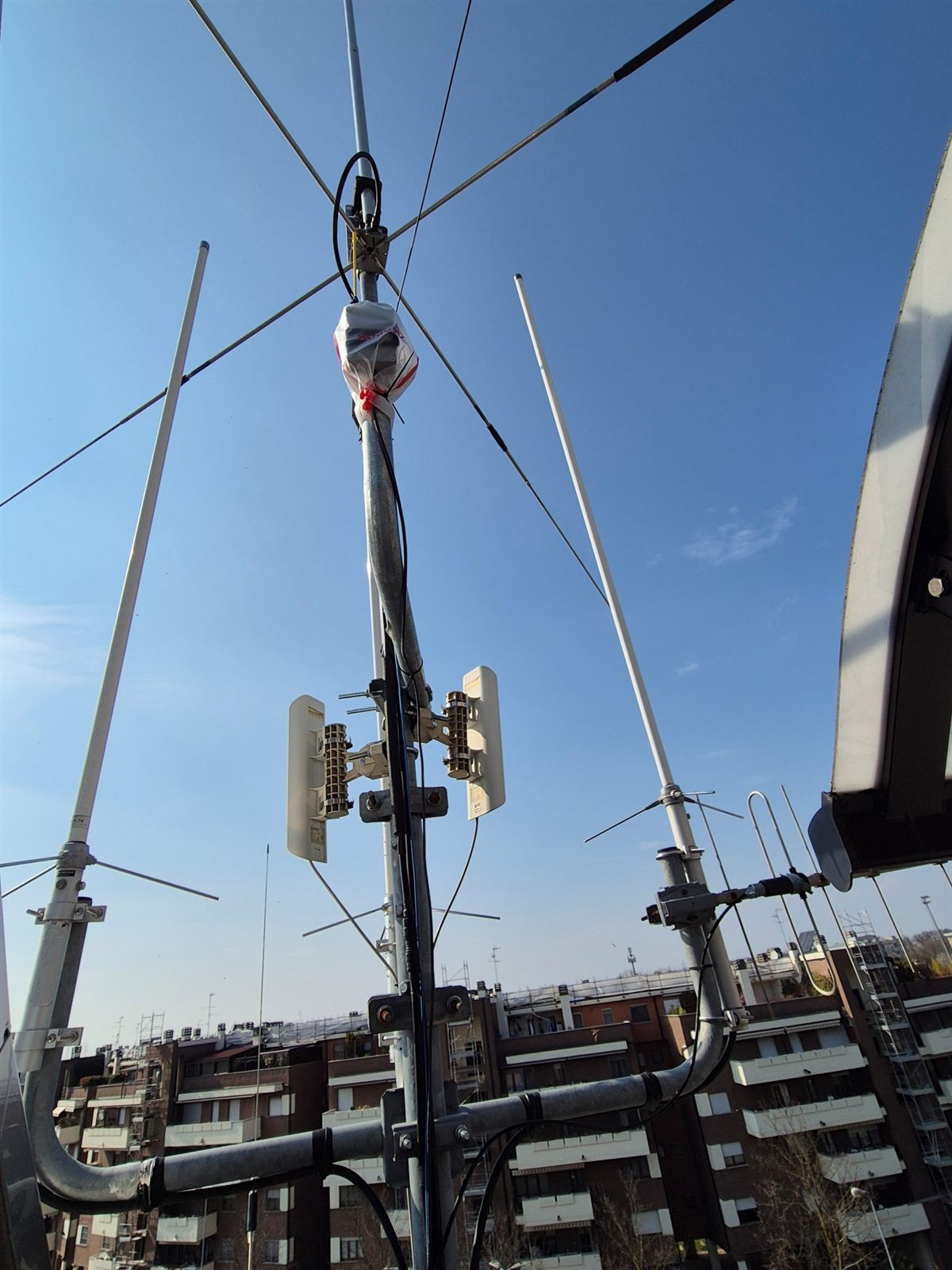

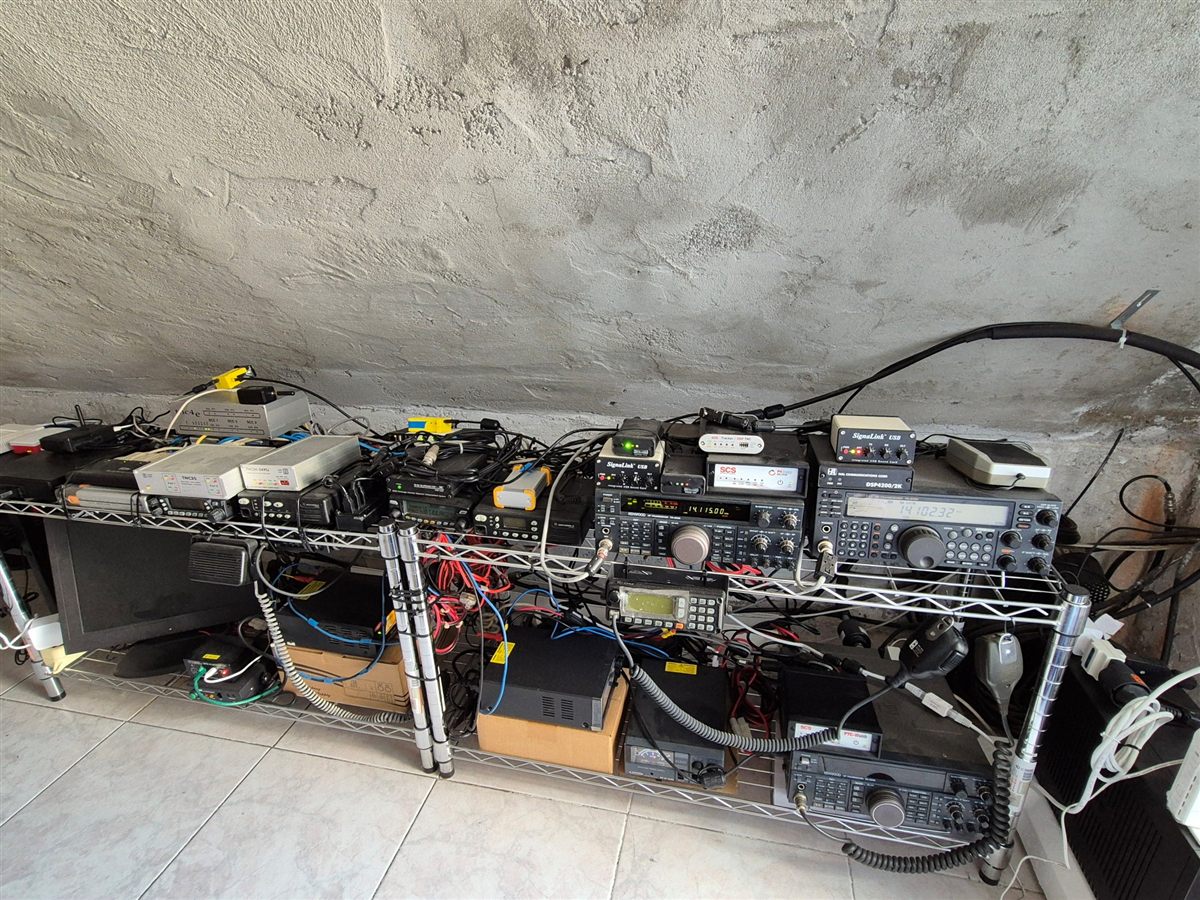

Photos of the shack:
HF3
HF1-HF2
external-box-aredn
aredn-south-antennas
inside-the-box
ant-1
ant-2
ant-3
rtx-2
rtx-3






AREDN Nodes:

Live Map

Node 1

Host:
ir2ufv-nsm5-nw.local.mesh
Channel
153 - 10 Mhz
Direction
North West
SSID: AREDN-10-v3

Node 2
Host:
ir2ufv-nsm5-ne.local.mesh
Channel
153 - 10 Mhz
Direction
North - North  East
SSID: AREDN-10-v3

Node 3
Host:
ir2ufv-pbem5400-sw.local.mesh
Channel
154 - 10 Mhz
Direction
South West  - Link to Milan city
SSID: AREDN-10-v3

Node 4
Host:
ir2ufv-nsm5-se.local.mesh
Channel
154 - 10 Mhz
Direction
South East  - Link to Milan city
SSID: AREDN-10-v3

LAN Hosts: iw2ohx-server.local.mesh (iw2ohx.ampr.org) / ir2ufv-server.local.mesh (ir2ufv.ampr.org)


D-Star IR2UFV Digital Voice Repeater - currently turned off -:

IR2UFV-B - QRG: 433.625Mhz - Connected to XLX039 B: IRCDDB Status - CCS Status - XRF Users - IRCDDB Log
UR: CQCQCQ
RPT1: IR2UFV B
RPT2: IR2UFV G

GPS / GPS-A Enabled
D-PRS / D-Rats Enabled
IRCDDB Callsign Routing Enabled
CCS7 Enabled - DTMF Code: 2222147 - Modulo B DTMF Code: 22221472


Yaesu Wires-x (System Fusion) IR2UFV:
IR2UFV-ND - QRG: 144.8625Mhz - Connected to ROOM Italy North: Room Italy Status - Stanze italiane - Dashboard

GPS / GPS-A Enabled
APRS Enabled
DTMF ID: 17819
